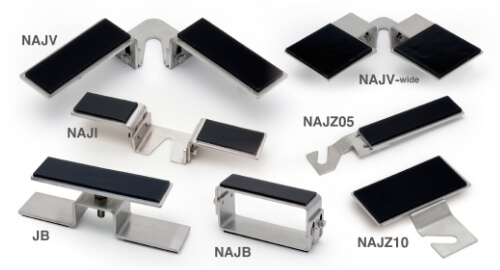

Equipment products7 models
This product is suitable for earthquake resistance of large equipment such as production equipment.
- How to select metal brackets for equipment
-
How to select metal brackets for equipment
-
Step 1Please confirm whether it corresponds to the installation target equipment
- Equipment weight
- 4,000 kg or less
- Equipment dimensions (reference)
- width: 1,000 mm / depth: 800 mm
- Center of gravity position (reference)
- X: 500 mm/Y: 400 mm/H: 800 mm
- Installation status
- 4 adjustment bolts, special labeler, etc.
- Example of floor material that can be used
- Epoxy urethane vinyl, floor, lacquer, urethane, sealer, acrylic, P tile, iron plate, etc.
- Floor types not recommended
-
Continuously wet floors (water, oil), deteriorated painted floors, cement*
If the floor material is cement, it may be possible to use by applying a special primer.
-

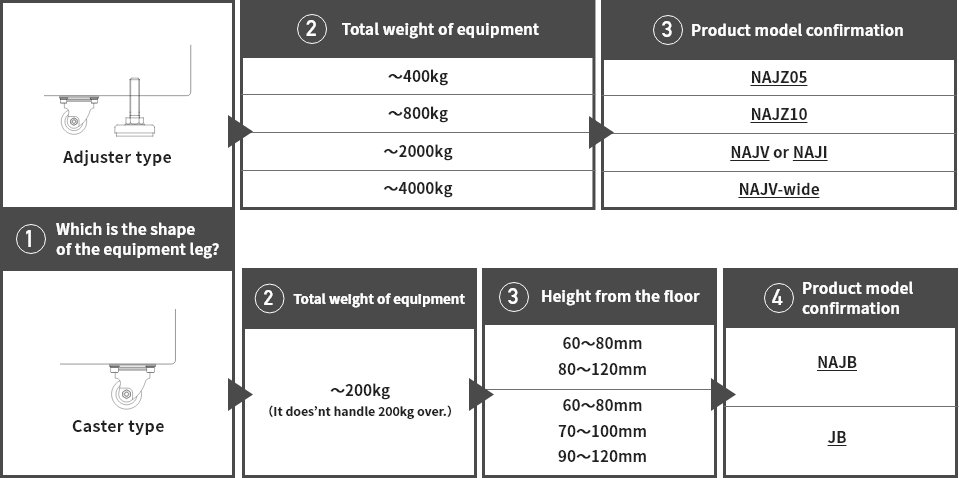

Step 2Select a product model
Please select a product according to the table below.
SCROLL
* NAJZ is recommended when the adjuster and caster are close. -
Step 3Select the model
Each equipment product model has a model depending on the foot diameter and screw dimensions. Please select based on the content of “Model / Dimension” in each product description below.
If you do not know the detailed information of the equipment you are planning to install, or if you do not know the suitable product, or if you are in a hurry, you can send us a design drawing and we will select it. For more information, please contact us.
-

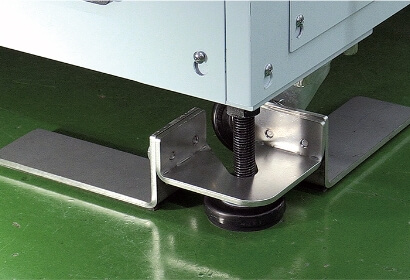

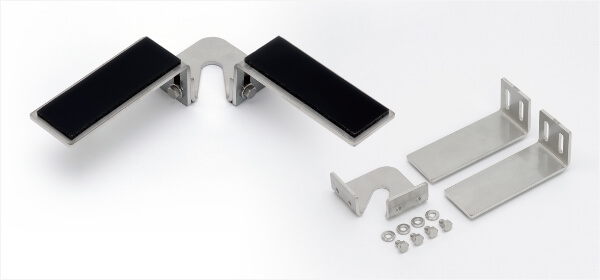

NAJV
Adjuster fixed type/normal type
- Features
- Standard type ideal for factory equipment. It fits equipment regardless of the height of the adjuster to be installed.
- Compatible device examples
- Equipment with leg shape adjuster type
- Compatible weight
- Up to 2,000 kg (*Standard weight when using 4 locations)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

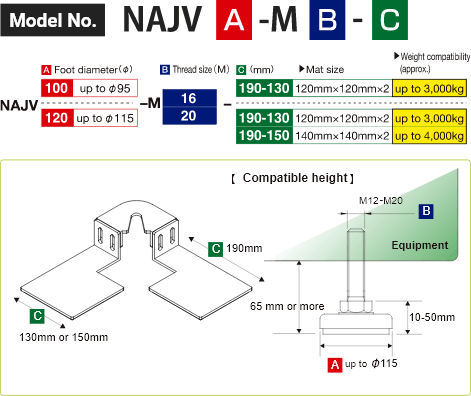

![Model no. NAJV [Foot diameter (φ) ]-M[Thread size (M) ]-[Mat size (mm)]](../img/lineup/najv_type.png)
Weight compatibility (approx.) is for 4-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJV90-M16-160
Selecting the right NAJV model: For example, select（90）for adjusters with a foot diameter up to φ85, （16）for thread size M16, and （160）mm base metal parts for weight compatibility of up to 1,000 kg.

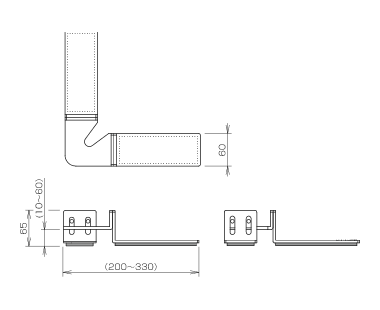

- Detailed dimensions
-

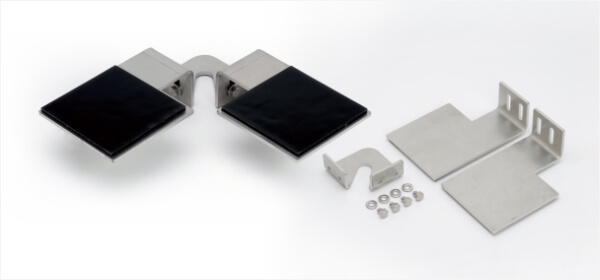

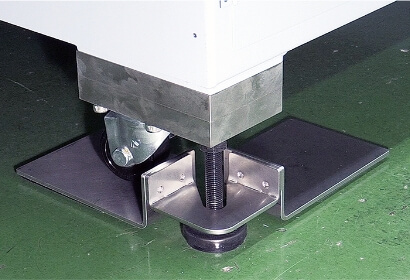

NAJV-wide
Adjuster fixed type/wide type
- Features
- Compared to standard NAJV, it has a larger mat area and supports heavier equipment.
- Compatible device examples
- Equipment with adjustable leg type / high weight equipment
- Compatible weight
- 2,000kg to 4,000kg (*Standard weight when using 4 locations)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

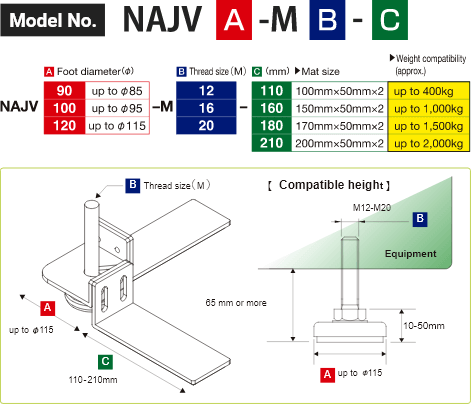

![Model no. NAJV [Foot diameter (φ) ]-M[Thread size (M) ]-[Mat size (mm)]](../img/lineup/najv-wide_type.png)
Weight compatibility (approx.) is for 4-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJV100-M16-190-130
Selecting the right NAJV model: For example, select（100）for adjusters with a foot diameter up to φ95,（16） for theread size M16, and（190-130）size base metal parts for weight compatibility of up to 3,000 kg.

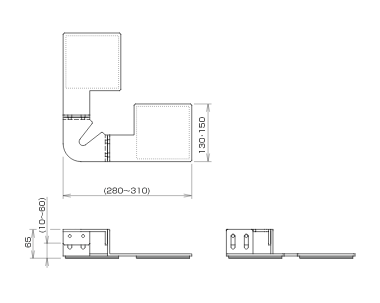

- Detailed dimensions
-

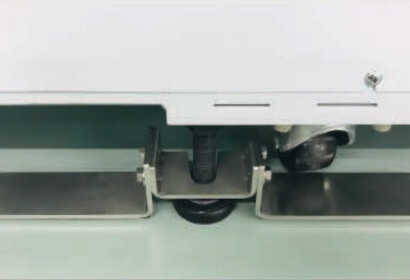

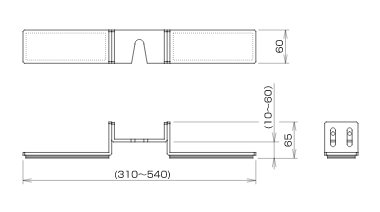

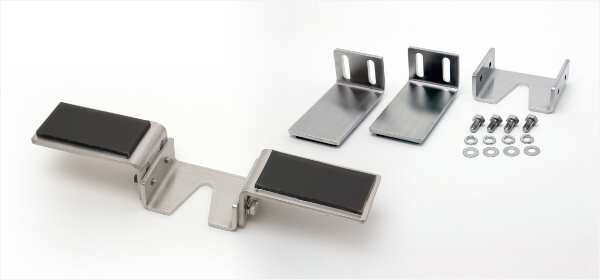

NAJI
Adjuster fixed type
- Features
- We will fix the middle position of long equipment.
- Compatible device examples
- Equipment with leg shape adjuster type
- Compatible weight
- Up to 2,000 kg (*Standard weight when using 4 locations)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

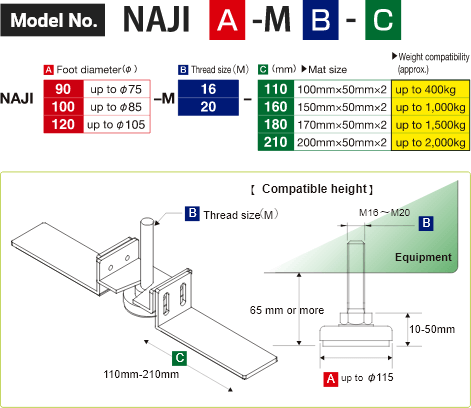

![Model no. NAJI[台座径（φ）]-M[ネジ寸法（M）]-[マットサイズ（mm）]](../img/lineup/naji_type.png)
Weight compatibility (approx.) is for 4-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJI90-M16-160
Selecting the right NAJI model: For example, select（90）for adjusters widh a foot diameter up to φ75,（16）for thread size M16, and（160）mm base metal parts to 1,000 kg.
- Detailed dimensions
-

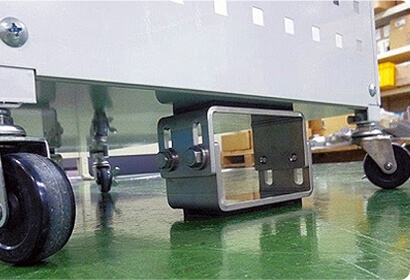

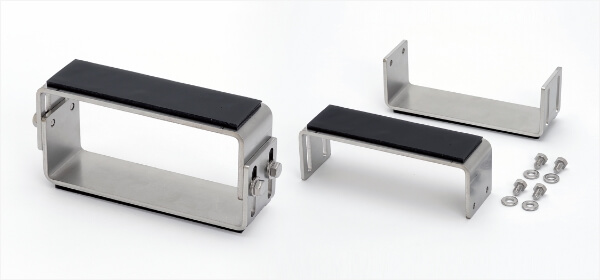

NAJB
Fixed jack-up type
- Features
- No adjuster, ideal for equipment with casters only. Mats are attached to the top and bottom of the metal brackets to fix the equipment and floor.
- Compatible device examples
- Equipment with caster type legs
- Compatible weight
- ~200kg (*Reference weight when using 2 places)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

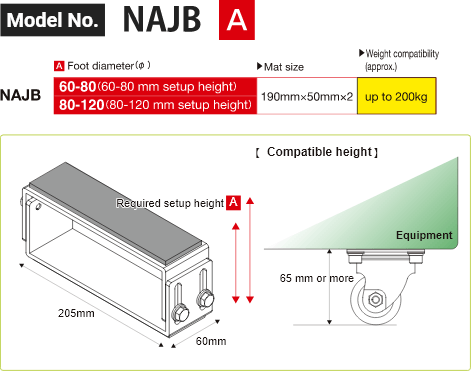

![Model no. NAJB[使用高さ（mm）]](../img/lineup/najb_type.png)
Weight compatibility (approx.) is for 2-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJB80-120
Selecting the right NAJB model: For example, select（80-120）for equipment that needs to be set 90 mm adove the floor.

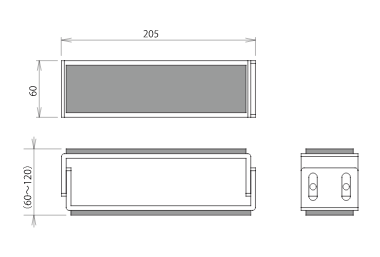

- Detailed dimensions
-

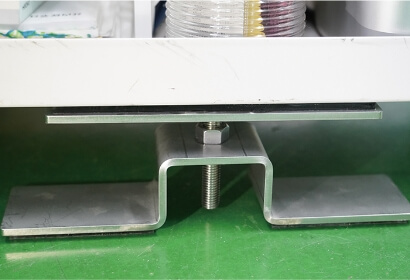

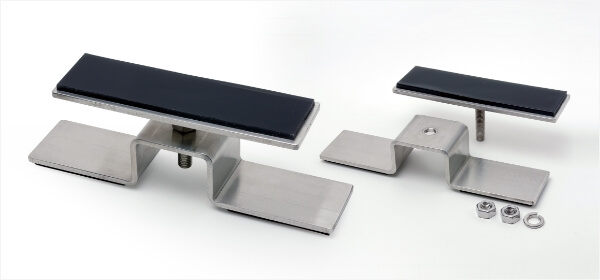

JB
Fixed jack-up type
- Features
- Suitable for equipment with only casters, no adjusters. Mats are attached to the top and bottom of the metal brackets to fix the equipment and floor. Height can be adjusted more easily than NAJB.
- Compatible device examples
- Equipment with caster type legs
- Compatible weight
- ~200kg (*Reference weight when using 2 places)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

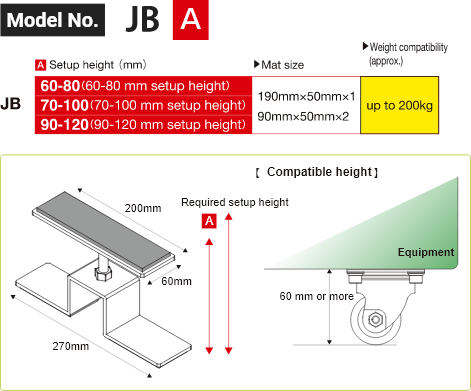

![Model no. JB[使用高さ（mm）]](../img/lineup/jb_type.png)
Weight compatibility (approx.) is for 2-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:JB70-100
Selecting the right JB model: For example, select（70-100）for equipment that needs to be set 90 mm adove the floor.

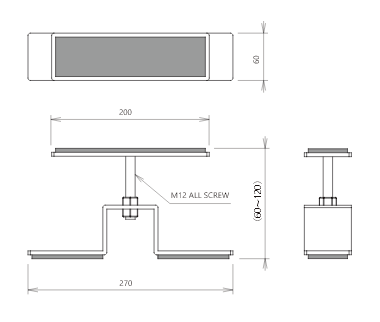

- Detailed dimensions
-

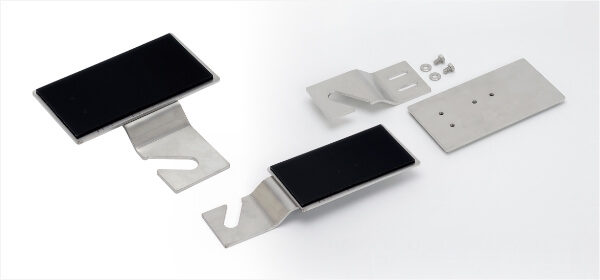

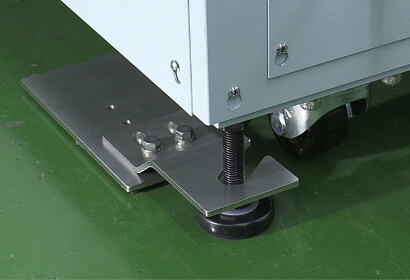

NAJZ10
Adjuster fixed type
- Features
- Even if there is a caster near the adjuster, it can be installed without receiving interference from the installation section. It can also be used when the height from the floor to the equipment is narrow. Since the shape can be changed (vertical / horizontal) depending on the bolt stop position, it is suitable for a wider range of equipment.
- Compatible device examples
- Equipment of adjuster + caster with leg shape
- Compatible weight
- ~ 800 kg (*Standard weight when using 4 locations)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

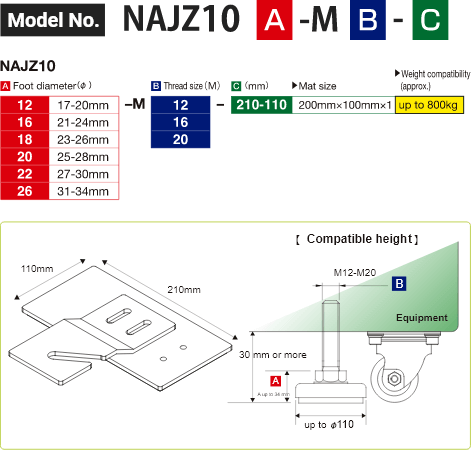

![Model no. NAJZ10 [Compatible height]-M[Thread size (M) ]-[Mat size (mm)]](../img/lineup/najz10_type.png)
Weight compatibility (approx.) is for 4-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJZ1012-M16-210-110
Selecting the right NAJZ10 model: For example, select（12）for a setup height of 20mm,（16）for thread size M16, and（210-110）size base metal parts for weight compatibility of up to 800 kg.

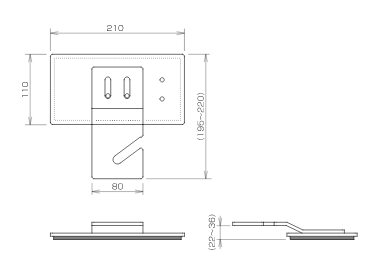

- Detailed dimensions
-

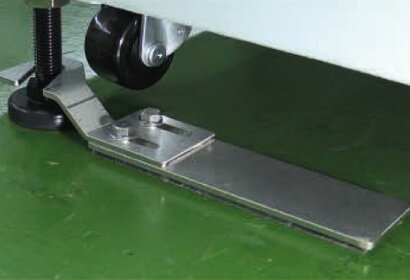

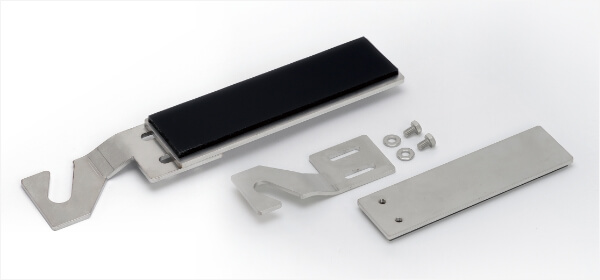

NAJZ05
Adjuster fixed type
- Features
- Even if there is a caster near the adjuster, it can be installed without receiving interference from the installation section. It can also be used when the height from the floor to the equipment is narrow. It is designed for lighter weights than the NAJZ10.
- Compatible device examples
- Equipment of adjuster + caster with leg shape
- Compatible weight
- ~ 400 kg (*Reference weight when using 4 places)
- Model / Dimension
-
- Model No.
-
Please refer to the chart on the bottom when placing an order.

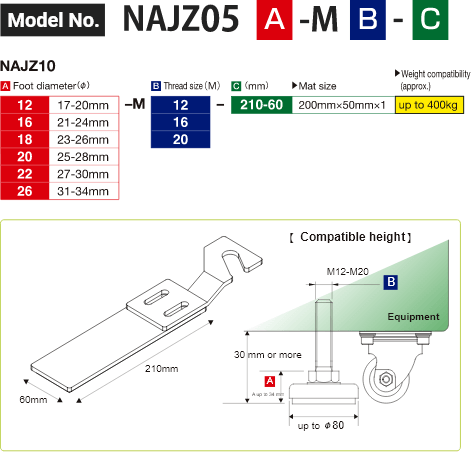

![Model no. NAJZ05 [Compatible height]-M[Thread size (M) ]-[Mat size (mm)]](../img/lineup/najz05_type.png)
Weight compatibility (approx.) is for 4-point installation.
Mat size depends on equipment dimensions and weight.
Example model no.:NAJZ0512-M16-210-60
Selecting the right NAJZ05 model: For example, select（12）for a setup height of 20 mm,（16）for thread size M16, and（210-60）size base metal parts of weight compatibility of up to 800 kg.
- Detailed dimensions
-

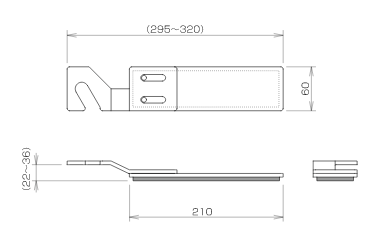

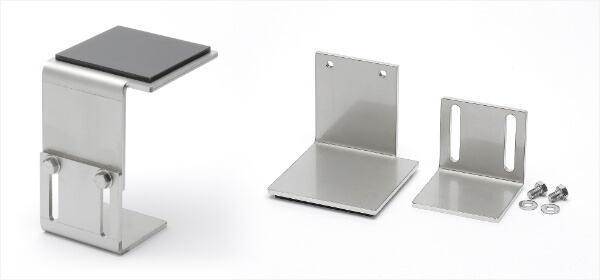

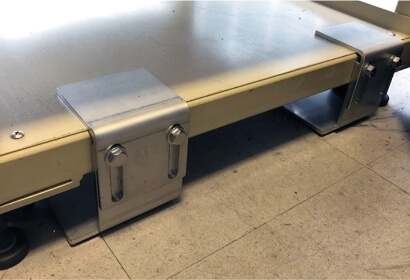

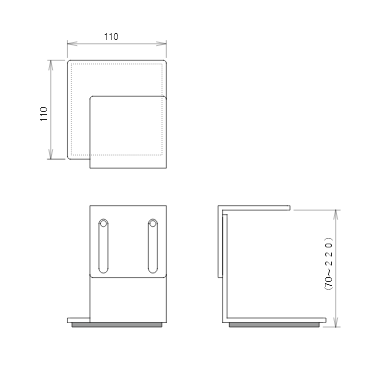

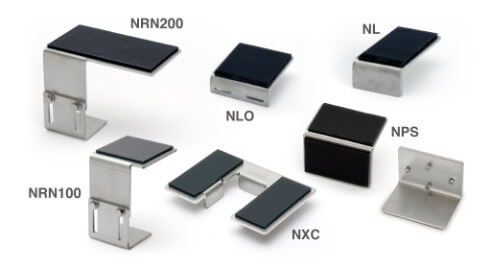

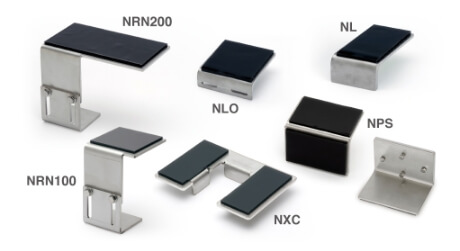

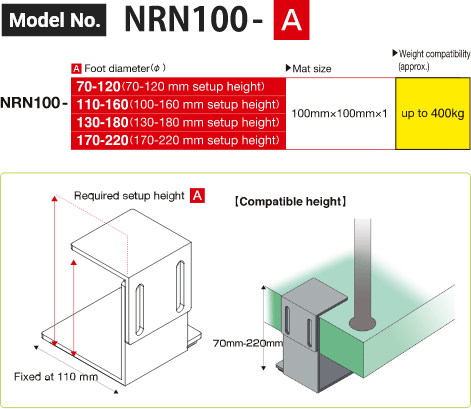

![Model no. NRN100-[使用高さ（mm）]](../img/lineup/nrn100_type.png)

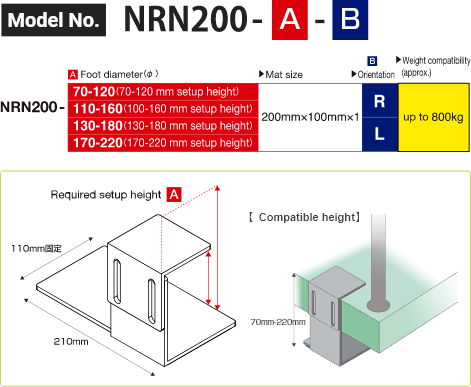

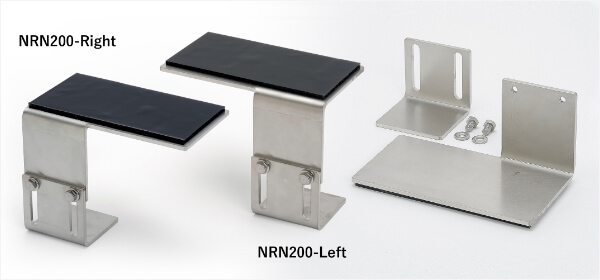

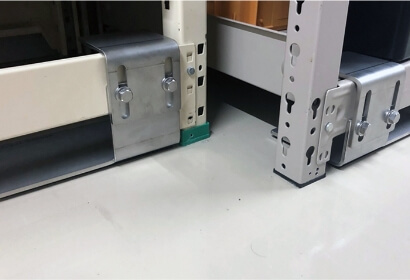

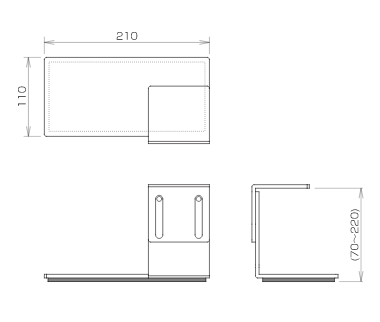

![Model no. NRN200-[使用高さ（mm）]-[方向]](../img/lineup/nrn200_type.png)
