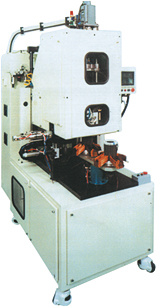

Insert Type Coil Winding MachineBSW-100

BSW-100 is developed to produce fan motor, motor for washing machine and especially for small motors. The machine drops the wound wire in to the coil transfer tool on the turn table. Wire dropping (transferring) is made directly by the weight of wire.

BSW-100
BSW-100

Features

  • 5 axes servo motor control. (Flyer,winding jump,tool index,leads puller (2axes) )
  • Possible to save more than 20 specification from touch panel input.
  • Set the specification parameter from touch panel. (2 poles,4 poles,6 poles,main coil,sub coil,continues winding,individual winding)

BSW-100

Model BSW-100
No. of winding head 1
Applicable wire gauge ø0.15-1.0mm
Winding Speed Max. 3,000rpm
Flyer track SDT ø200mm　Max. ø250mm
No. of coil step Max. 4 steps
No. of turntable 1
Winding counter Max. total 999 turns
Winding method Continuous winding / uncontinous winding
Winding direction CW/CCW
Lead puller 1
Wire cutter 1
Power supply AC200V±10% 3 phase 50/60Hz
Air supply Min. 0.5MPa
Machine dimensions 1,600(W)x1,000(D)x2,200(H)mm
Machine weight Approx. 1,000kg
