Available for wide range of material!WIRE FEEDING & REELING SYSTEM - Rewinder, Recoiller
Nittoku’s Feeding machine & Reeling machine are suitable for wide range of material like metal, fabric etc…
Materials
| Metal group | Gold, Silver, Copper, Platinum, Tangsten, Stainless, Aluminum Steel wire, Welding wire, Solder wire, Copper foil, Aluminum foil, etc. |
Form |
Round wire Rectangle wire Ribbon wire Twisted wires Clad wire Sheet Film etc. |
| Resin group | Fishing line, Belt core, Air tube, Electric line, Resin fiber etc. |
||
| Others | Glass fiber, Fiber yarn, Carbon fibre, Paper, Cloth, Film, Wrap film, Adhesive tape, Nonwovon fabric, Elastic film, Metalic thin film, Hard film, etc. |

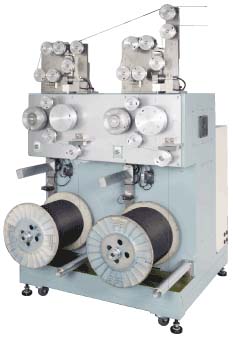

New type of wire feeding mechanism has tension parameter feedback function! This has made
SVT-02 series suitable for the material that has the character of strong tension and easy stretching.
Ex. Belt cord, Litz wire, Electric wire etc…
 |
 |
|---|
SVT series reference tension range
| Model | SVT-02M | SVT-02ML | SVT-02MLL | SVT-02L | SVT-02LL |
|---|---|---|---|---|---|
| Tension range | 0.5～3.0kg | 0.5～12.0kg | 0.5～8.0kg | 0.5～12.0kg | 0.7～20.0kg |
 |
 |
 |
 |
| SVT-01 | SVT-01FR | SVT-11 | SVT-06 |
| Suitable wire feeding in low tension |
Suitable for litz wire, inner winding, and tension change during operation |
Suitable for elastic wire which needs high tension to wind |
Multiple type feeder, suitable for elastic wire that can not be wound by standard brake tension system |
| Tension range | Tension range | Tension range | Tension range |
| 1～16.8ｇ | 50～650g | 200～500ｇ | 20～250ｇ |
Wire reeling machine with new software for layer winding
 |
Outline |
|---|---|
|
■ Traverse motion is available during winding by button press. It is available at also machine stop condition. ■If winding disorder occurs, it is possible to rewind the winding manually. |
|
Applicable spec |
|
|
■ Coils those are needed / difficult to be wound by “layer winding”. ■ Transformer coil (paper winding), solenoid ■ For wire solder, fishing lines etc… |
|
 |
Wire feeding & reeling system for flat wire |
|---|---|
|
Cleaning machine can be mounted at the middle of the system. |
|
