Equipment products7 models

This product is suitable for earthquake resistance of large equipment such as production equipment.

Equipment products
How to select metal brackets for equipment

How to select metal brackets for equipment

  1. Step 1Please confirm whether it corresponds to the installation target equipment

    Equipment weight
    4,000 kg or less
    Equipment dimensions (reference)
    width: 1,000 mm / depth: 800 mm
    Center of gravity position (reference)
    X: 500 mm/Y: 400 mm/H: 800 mm
    Installation status
    4 adjustment bolts, special labeler, etc.
    Example of floor material that can be used
    Epoxy urethane vinyl, floor, lacquer, urethane, sealer, acrylic, P tile, iron plate, etc.
    Floor types not recommended
    Continuously wet floors (water, oil), deteriorated painted floors, cement*
    If the floor material is cement, it may be possible to use by applying a special primer.
  2. Step 2Select a product model

    Please select a product according to the table below.

    SCROLL

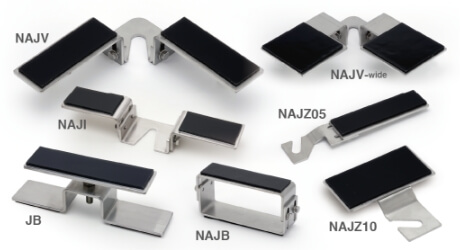

    NAJZ05 NAJZ10 NAJV NAJI NAJV-wide NAJB JB
    * NAJZ is recommended when the adjuster and caster are close.
  3. Step 3Select the model

    Each equipment product model has a model depending on the foot diameter and screw dimensions. Please select based on the content of “Model / Dimension” in each product description below.

If you do not know the detailed information of the equipment you are planning to install, or if you do not know the suitable product, or if you are in a hurry, you can send us a design drawing and we will select it. For more information, please contact us.

NAJV

Adjuster fixed type/normal type

Example of use
Features
Standard type ideal for factory equipment. It fits equipment regardless of the height of the adjuster to be installed.
Compatible device examples
Equipment with leg shape adjuster type
Compatible weight
Up to 2,000 kg (*Standard weight when using 4 locations)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJV [Foot diameter (φ) ]-M[Thread size (M) ]-[Mat size (mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJV90-M16-160

Selecting the right NAJV model: For example, select(90)for adjusters with a foot diameter up to φ85, (16)for thread size M16, and (160)mm base metal parts for weight compatibility of up to 1,000 kg.

Detailed dimensions
diagram

NAJV-wide

Adjuster fixed type/wide type

Example of use
Features
Compared to standard NAJV, it has a larger mat area and supports heavier equipment.
Compatible device examples
Equipment with adjustable leg type / high weight equipment
Compatible weight
2,000kg to 4,000kg (*Standard weight when using 4 locations)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJV [Foot diameter (φ) ]-M[Thread size (M) ]-[Mat size (mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJV100-M16-190-130

Selecting the right NAJV model: For example, select(100)for adjusters with a foot diameter up to φ95,(16) for theread size M16, and(190-130)size base metal parts for weight compatibility of up to 3,000 kg.

Detailed dimensions
diagram

NAJI

Adjuster fixed type

Example of use
Features
We will fix the middle position of long equipment.
Compatible device examples
Equipment with leg shape adjuster type
Compatible weight
Up to 2,000 kg (*Standard weight when using 4 locations)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJI[台座径(φ)]-M[ネジ寸法(M)]-[マットサイズ(mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJI90-M16-160

Selecting the right NAJI model: For example, select(90)for adjusters widh a foot diameter up to φ75,(16)for thread size M16, and(160)mm base metal parts to 1,000 kg.

Detailed dimensions
diagram

NAJB

Fixed jack-up type

Example of use
Features
No adjuster, ideal for equipment with casters only. Mats are attached to the top and bottom of the metal brackets to fix the equipment and floor.
Compatible device examples
Equipment with caster type legs
Compatible weight
~200kg (*Reference weight when using 2 places)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJB[使用高さ(mm)]

Weight compatibility (approx.) is for 2-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJB80-120

Selecting the right NAJB model: For example, select(80-120)for equipment that needs to be set 90 mm adove the floor.

Detailed dimensions
diagram

JB

Fixed jack-up type

Example of use
Features
Suitable for equipment with only casters, no adjusters. Mats are attached to the top and bottom of the metal brackets to fix the equipment and floor. Height can be adjusted more easily than NAJB.
Compatible device examples
Equipment with caster type legs
Compatible weight
~200kg (*Reference weight when using 2 places)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. JB[使用高さ(mm)]

Weight compatibility (approx.) is for 2-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:JB70-100

Selecting the right JB model: For example, select(70-100)for equipment that needs to be set 90 mm adove the floor.

Detailed dimensions
diagram

NAJZ10

Adjuster fixed type

Example of use
Features
Even if there is a caster near the adjuster, it can be installed without receiving interference from the installation section. It can also be used when the height from the floor to the equipment is narrow. Since the shape can be changed (vertical / horizontal) depending on the bolt stop position, it is suitable for a wider range of equipment.
Compatible device examples
Equipment of adjuster + caster with leg shape
Compatible weight
~ 800 kg (*Standard weight when using 4 locations)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJZ10 [Compatible height]-M[Thread size (M) ]-[Mat size (mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJZ1012-M16-210-110

Selecting the right NAJZ10 model: For example, select(12)for a setup height of 20mm,(16)for thread size M16, and(210-110)size base metal parts for weight compatibility of up to 800 kg.

Detailed dimensions
diagram

NAJZ05

Adjuster fixed type

Example of use
Features
Even if there is a caster near the adjuster, it can be installed without receiving interference from the installation section. It can also be used when the height from the floor to the equipment is narrow. It is designed for lighter weights than the NAJZ10.
Compatible device examples
Equipment of adjuster + caster with leg shape
Compatible weight
~ 400 kg (*Reference weight when using 4 places)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NAJZ05 [Compatible height]-M[Thread size (M) ]-[Mat size (mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NAJZ0512-M16-210-60

Selecting the right NAJZ05 model: For example, select(12)for a setup height of 20 mm,(16)for thread size M16, and(210-60)size base metal parts of weight compatibility of up to 800 kg.

Detailed dimensions
diagram

Large item products6 models

Suitable for fixing warehouse and office supplies such as racks and copiers.

Large item products

NRN100

Shelf type with legs

Example of use
Features
Suitable for small furniture.
Compatible device examples
A wide range of items such as small racks, copy machines, and tables
Compatible weight
~ 400 kg (*Reference weight when using 4 places)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NRN100-[使用高さ(mm)]

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NRN100-130-180

Selecting the right NRN100 model: For example, select(130-180)to set 150 mm adove the floor.

Detailed dimensions
diagram

NRN200 R/L

Shelf type with legs

Example of use
Features
Suitable for large items. Please check the model number "R/L" when placing an order, as there are mirror-image versions.
Compatible device examples
A wide range of items such as large racks, copy machines, and tables
Compatible weight
~ 800 kg (*Standard weight when using 4 locations)
Model / Dimension
Model No.

Please refer to the chart on the bottom when placing an order.

Model no. NRN200-[使用高さ(mm)]-[方向]

Weight compatibility (approx.) is for 4-point installation.

Weight compatibility (approx.) is for 4-point installation.

Mat size depends on equipment dimensions and weight.

Example model no.:NRN200-130-180-R

Selecting the right NRN200 model: For example, select(130-180)to set 150 mm adove the floor, in either an R or L orientation.

Detailed dimensions
diagram

NXC

Fixed type

Example of use
Features
Casters will be fixed directly.
Compatible device examples
Large items, etc. with casters
Compatible weight
~200kg (*Reference weight when using 4 places)
Model / Dimension
Model No.
Model no. NXC

Weight compatibility (approx.) is for 4-point installation.

Detailed dimensions
diagram

NLO

Fixed type

Example of use
Features
Tighten the screws to the item to fix the mat and item.
Compatible device examples
Lockers, shelves, etc.
Compatible weight
~ 300kg (*Reference weight when using 4 places)
Model / Dimension
Model No.
Model no. NLO1010-33

Weight compatibility (approx.) is for 4-point installation.

Detailed dimensions
diagram

NL

Tabletop type

Example of use
Features
Prevents precision equipment, etc. installed on the table from falling over.
Compatible device examples
Precision equipment, etc.
Compatible weight
~150kg (*Reference weight when using 4 locations)
Model / Dimension
Model No.
Model no. NL110-60-40

Weight compatibility (approx.) is for 4-point installation.

Detailed dimensions
diagram

NPS 200-80NPS 130-90

Fixed type

Example of use
Features
Fix the top plate and the back wall of the furniture. Even if the angle between the top plate and the wall is not right, you can use it by adjusting it to the angle of the wall.
Compatible device examples
Lockers, shelves, etc.
Compatible weight
~ 400 kg (*Reference weight when using 4 places)
Model / Dimension
Model No.
Model no. NPS200-80

Weight compatibility (approx.) is for 4-point installation.

Detailed dimensions
diagram
Model No.
Model no. NPS130-90

Weight compatibility (approx.) is for 4-point installation.

Detailed dimensions
diagram
